ALOGIC – Fusion Pro DUO USB-C Dual HDMI Dock

Description

SPECIFICATIONS AND FEATURES :

• Part No.: FUP2HD1

Physical Characteristics

• Product Dimensions: 130 x 55 x 17.5mm (L x W x H excluding cable)
• Cable Length: 230mm
• Colour: Space Grey and Black
• Weight (product): 133g approx
• Materials: Aluminium and ABS

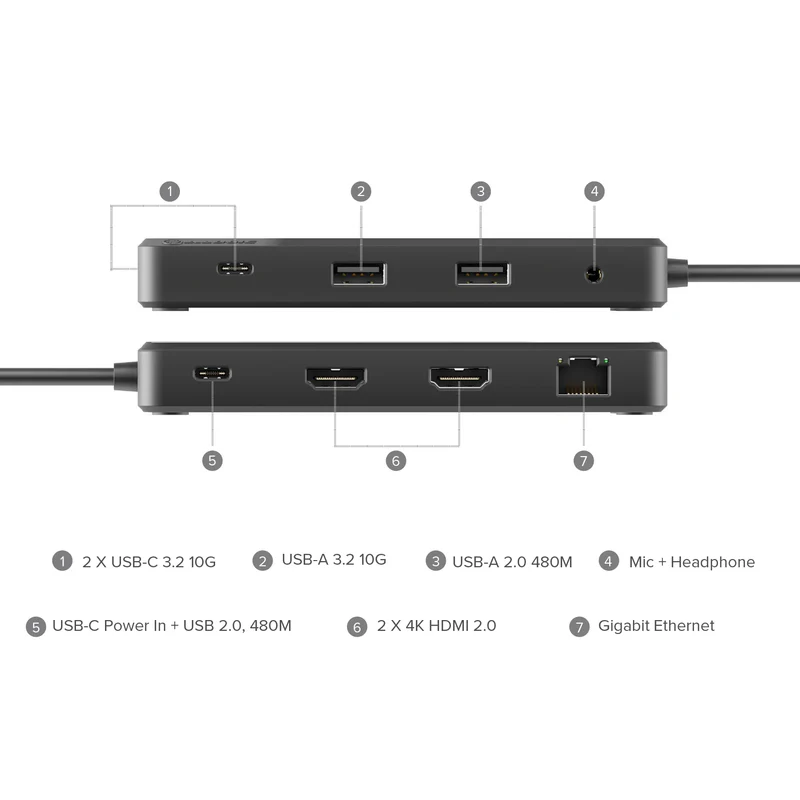

• Input: 1 x Integrated USB-C cable for connection to computer
  1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB 2.0 data)
• Output: 2 x HDMI 2.0
  1 x USB-A 3.2 Gen 2 10Gbps
  1 x USB-A 2.0 480Mbps
  2 x USB-C 3.2 Gen 2 10Gbps
  1 x USB-C 2.0 with PD power passthrough
  1 x 3.5mm Headphone/Mic Audio Jack
  1 x RJ45 Ethernet 1Gbps
• Power: Device can operate powered from the host computer or by
  connecting a USB-C Power Delivery (USB PD) power adapter (not
  included).
  The hub will accept up to 100W of power when a suitable USB PD
  power supply is connected; up to 15W is reserved for use by the hub
  and connected devices and the remaining power will be made
  available to charge the computer (up to 85W, dependent on the size
  of the power supply).
• Video Resolution: Maximum refresh rate is dependent on the capability of the host
  computer and resolution of the connected display.
• Audio Support: -Supports HDMI audio output
  -Supports stereo audio out and mic/line in via 3.5mm connector
• Environmental Characteristics: Operating Temperature- 0°C to +35°C
  Operating Humidity- 10% to 85% RH (no condensation)
• Package Includes: 1 x FUP2HD1 USB-C Dual Display Dock
  1 x User Manual
• Device Compatibility: -Compatible with Windows, MacOS, ChromeOS computers.
  -USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video port on the dock to work.
  -USB-C port on the computer that the device is connected to must support USB Power Delivery charging for passthrough charging from the dock to work.
  -Windows and some ChromeOS computers are able to show independent video on two displays connected to this device.
  -MacOS devices are not able to show independent video on two or more displays connected to this device. This device is suitable for connecting MacOS devices to a single display. Compliance FCC, CE, UKCA, RoHS
• Warranty: 2 Years
