ALOGIC – USB-C 12-In-1 Triple Display Compact Docking Station

SPECIFICATIONS AND FEATURES :

• Part No.: DUCDDV3V2

Physical Characteristics-

• Colour: Space Grey
• Dimensions: 127 (L) x 60 (W) x 16.5 (H) mm
• Warranty: 2 Years
• Output: 2x HDMI Video Outputs
  1x VGA Video Output
  1x USB-C 3.2 Gen 1 (5G)
  1x USB-A 3.2 Gen 1 (5G)
  3x USB-A 2.0
  1x RJ45 Gigabit Ethernet
  1x SD Memory Card Reader
  1x Micro SD Memory Card Reader
• Input: 1x USB-C or USB-A Connection to Laptop
  1x USB-C PD Power Adapter Input
• Power: This dock can be powered by the USB port on the host laptop or by connecting a USB-C power adapter. The dock accepts up to 100W (20V/5A) of power to run the dock and connected accessories as well as charging the connected laptop.
  Passthrough charging requires connection of a USB-C power adapter. Power adapter and charging cable not included – use the power adapter that came with your computer or purchase separately.
• Resolution: HDMI 1 port output  Supported Resolution: 1920*1080@60 Hz.
  HDMI 2 port output  Supported 1920*1080@60 Hz.
  VGA port output Supported Resolution: 1920*1080@60 Hz.

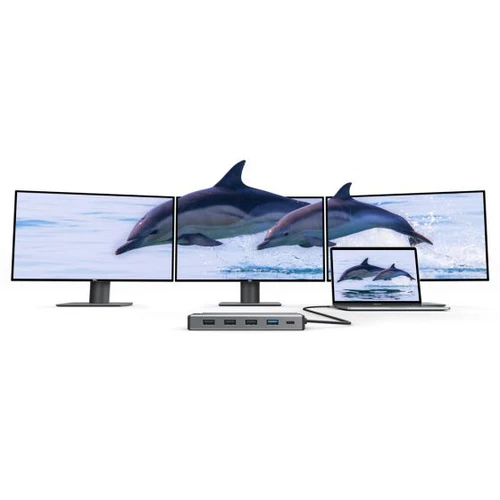

  This monitor supports two independent video outputs. If three monitors are plugged into the dock, the VGA output will display the same video as one of the HDMI outputs.

• Package Includes: 1x ALOGIC USB-C 12-in-1 Dual Display Mini Dock
  1x USB-C to USB-A Adapter
  1x User Manual
• Device Compatibility: Plug and Play compatibility with macOS, Windows (11/10/8/7), ChromeOS, iOS, Samsung Dex and Linux
